MSD Pro Mag 12 Electronic Points Box

Designed with sprint cars in mind, this MSD Pro Mag Box unit offers light weight and incredible power. The compact housing also sits an inch lower for improved clearance of the fuel injections plus features a band clamp mount for easier timing adjustments.

The electronic points box is the brain of the Pro Mag. It controls the spark duration and the unique full-power firing sequence of the Mag. The energy from the generator is controlled with Field Effect Transistor (FET) technology which is far superior to mags still using points as a trigger source.

The 12 Amp Points Box has a built-in Soft Touch Rev Control that is adjusted with plug-in rpm modules. The smooth rev limiting circuitry will save your expensive engine from overrev damage in the event of drivline failure or missed shifts.

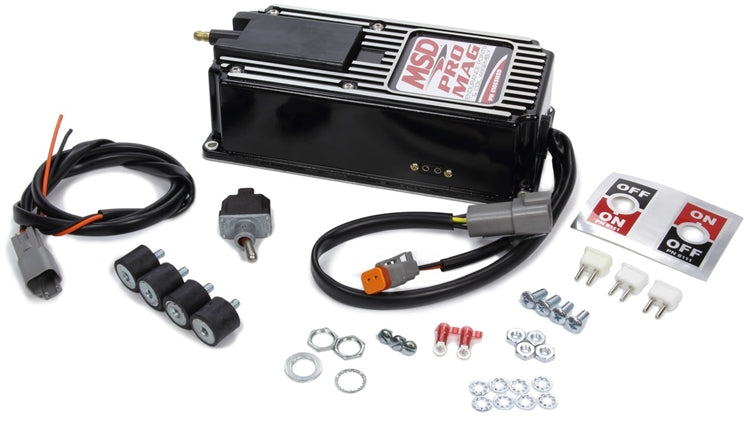

Complete with wiring harness, mounting hardware, switch, switch plate, plug-in RPM Modules.

Overall Height: 2.50"
Base Length: 8.00"
Base Width: 4.00"
Color: Black
Weight: 4 lbs
