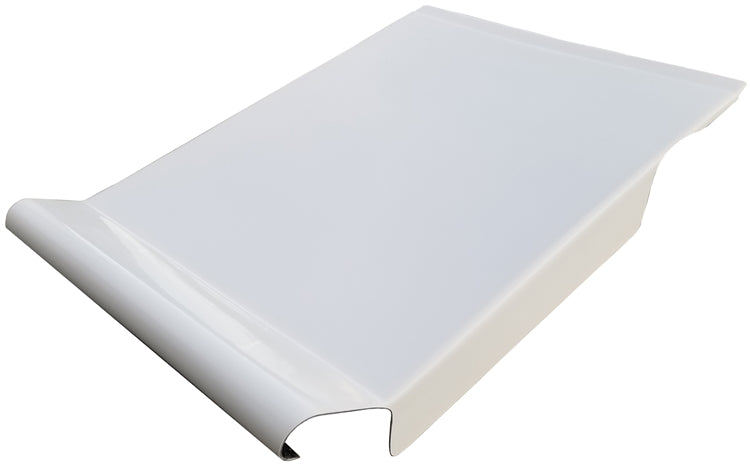

Sprint Car 5-Series Nose Center. White. 87" Chassis.

Fiberglass "center" nose piece for the 5-Series nose. Gel-Coated white.

Fits the 87" Chassis. Part # SC-BW-5558 is the equivalent for the 88" chassis.

The 5-Series features a 3-Piece nose with (individual) side pieces that can be trimmed to meet your series rules and the look you want. The side pieces contour the top rail, while the center section is recessed slightly between the frame rails (thus is basically an inside-the-rail nose).

Additional dzus plates will need to be added to the (stock) chassis. Click here to view diagram detailing ...

Trimming will be needed to meet WoO rules:
� Nose Side Pieces (SC-BW-5550 and SC-BW-5552) - trimmed so that body work is not below the front axle in front of the front axle.
� Hood Side Pieces (SC-BW-5553 and SC-BW-5555) - trimmed to the same height as the hood center.

Side pieces sold separately:
� Right Side: SC-BW-5550
� Left Side: SC-BW-5552 Material: Fiberglass
Color: White
Finish:Gel-Coated
Style: 5-Series. For use with the 5-Series body work line.
Weight: 3.0 lbs
Fits: 87" Chassis.
