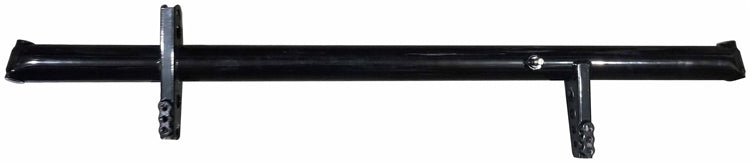

Sprint Car 50" X 2 1/4" Front Axle. Adjustable Shock Bracket. Black.

Our precision built 50" 2 1/4" X .120" wall 4130 chromoly front axles set the industry standard for quality and accuracy. Power coated Black.

Adjustable billet shock brackets (multiple spud location) has 3 shock mounting points for any combination of shocks and chassis shock tower. 3/4" adjustment between each shock mount.

9/12 kingpin angles set the wheel and tire to the track surface properly, allowing the driver to feel the front of his racecar. Black powder coated for a great finished look and factory reamed for easy installation.

50" Axles use a 46" Tie Rod.

Features ...

• Axle king pin bosses are reamed prior to shipping.
• Threaded panhard bar stud.
• Threaded billet shock mounts with 3 locations.


Requires a One Nut (SC-SU-7056 or SC-SU-9992) or Spacer (SC-SU-0150) to space shock from axle. Axle (tube) Material: 4130 Chromoly
Axle Diameter: 2 1/4"
Axle Wall Thickness: 0.120"
Right Front: 12�
Left Front: 9�
Offset: 1" Left Offset
Left Front Shock Mounts (from axle centerline): 4 1/2", 5 1/4", 6"
Right Front Shock Mounts (from axle centerline): 3", 3 3/4", 4 1/2"
Finish: Black Powdercoat
Total weight: 13.6 lb
