Wilwood Proportioning Valve

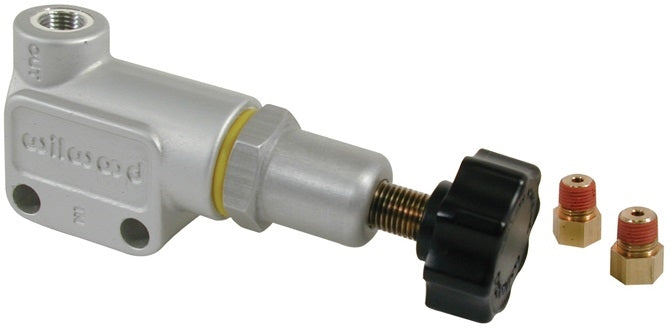

The new generation of adjustable proportioning valves combines the latest refinements to deliver precise pressure metering and strength from a compact forged billet design. Pressure adjustments range from 150-1200 PSI and provide for a maximum decrease of 57% in line pressure, the most of any available valve. Adjuster knob with fine thread tuning provides precise pressure adjustment. Valves weigh only 5.2 ounces and have two .25� side mounting holes spaced 1.00� apart.

Inlet / outlet ports are 1/8-27 NPT and valves are supplied with two 1/8-27 NPT to 3/8-24 inverted flare female fittings that will fit most domestic 3/16th hard brake lines.

Inlet Size: 1/8"-27 NPT
Inlet Fitting: 3/8" Inverted Flare Female
Outlet Size: 1/8"-27 NPT
Outlet Fitting: 3/8" Inverted Flare Female
